SLF10145T-331MR54-PF
Manufacturer:
TDK Corporation
Mfr.Part #:
SLF10145T-331MR54-PF
Datasheet:
Description:

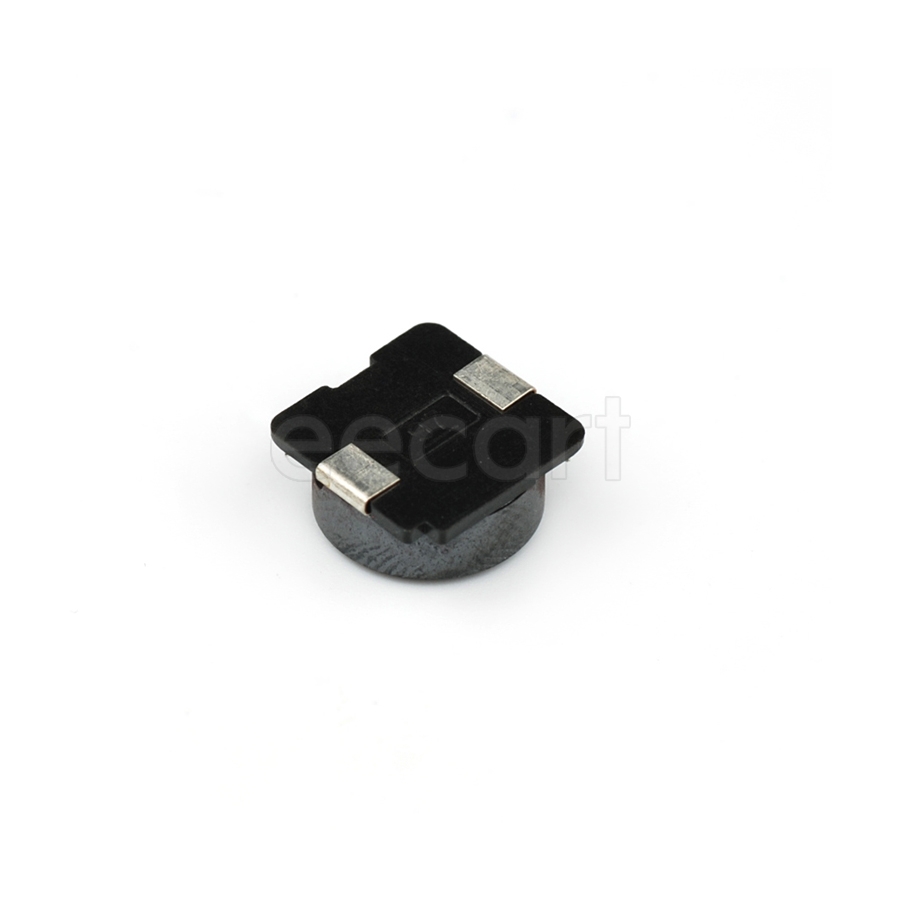

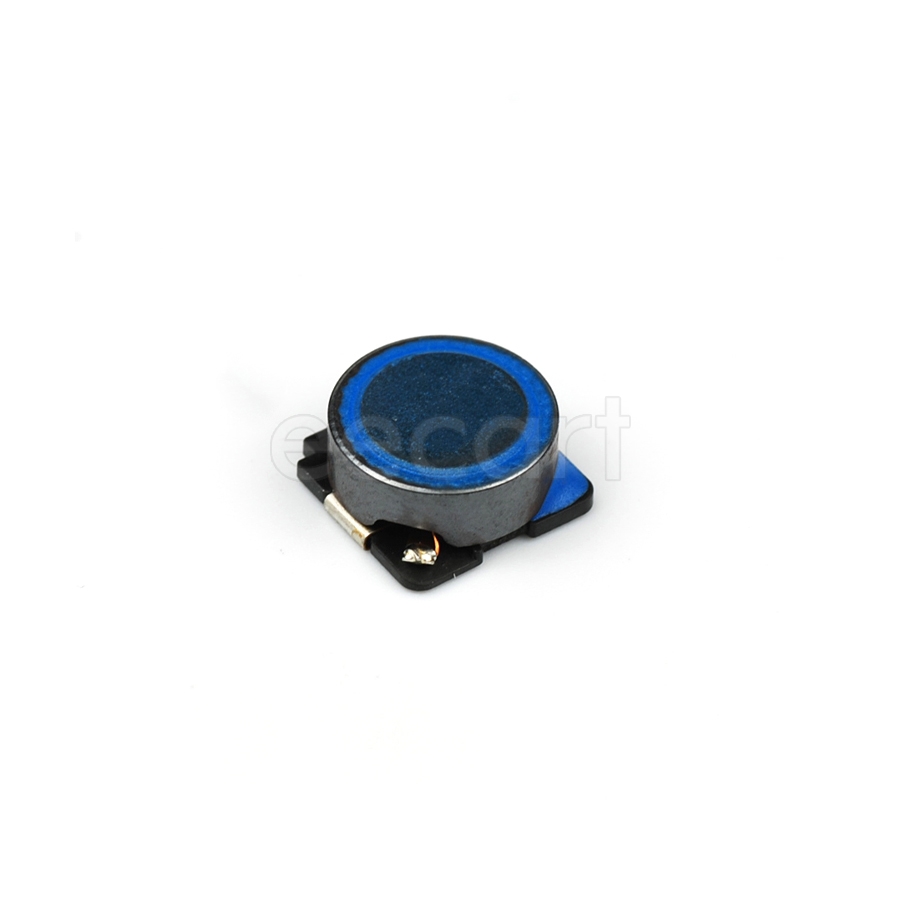

Fixed Inductors 10.10mmL×10.10mmW×4.50mmH SMD/SMT 330 µH 20 % 580 mA 680 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.8 mm |
| Length | 10.1 mm |
| Width | 10.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 10.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 580 mA |
| DC Resistance (DCR) | 680 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 580 mA |
| inductance tolerance | 20 % |
| Max DC Current | 540 mA |
| DC Current | 580 mA |
| Saturation Current | 540 mA |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 3188
Distributors
pcbx
pcbxUnit Price$0.50697
Ext.Price$0.50697
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50697 | $0.50697 |
| 10 | $0.42063 | $4.20630 |
| 25 | $0.39421 | $9.85525 |
| 50 | $0.36945 | $18.47250 |
| 100 | $0.34624 | $34.62400 |
| 300 | $0.31584 | $94.75200 |
| 500 | $0.28811 | $144.05500 |
| 1000 | $0.26930 | $269.30000 |
| 3000 | $0.26017 | $780.51000 |
| 5000 | $0.25135 | $1256.75000 |
